I'll never forget the time we spent three days chasing down an EMI problem that turned out to be caused by a single improperly installed waveguide ventilation board. The client was ready to replace their entire shielding system when we discovered the real issue: a hairline gap at the mounting interface that completely negated the board's shielding capabilities. That experience taught me what no textbook could – when it comes to these sophisticated components, installation isn't just part of the process; it's everything.

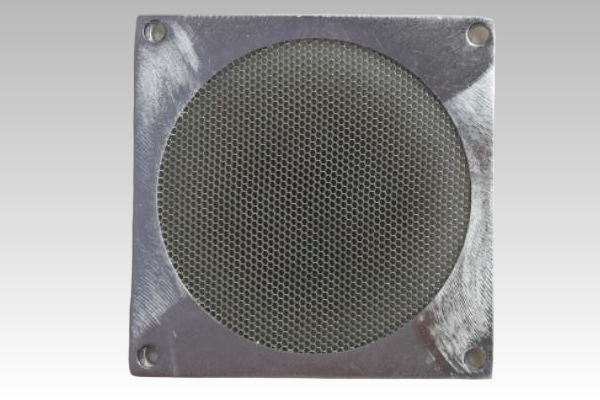

These boards represent an incredible engineering solution to the ventilation-versus-shielding dilemma, but their sophisticated design demands equally careful installation. I've seen too many projects where teams invest in top-tier waveguide ventilation board only to undermine their performance with rushed installation practices.
The magic – and the misery – happens at the interface between the board and its enclosure.Even microscopic gaps become highways for electromagnetic interference, completely bypassing the carefully engineered channels designed to block it. I always tell my team: "The board doesn't stop EMI – the properly installed system does."
Getting it right starts with surface preparation, something many installers overlook.Both contact surfaces need to be surgically clean – free of paint, oxidation, or even fingerprints that might compromise conductivity. We've developed a simple but effective three-step cleaning process that makes all the difference: degrease, abrade, and verify. The extra ten minutes this takes has saved countless projects from performance issues down the line.
Conductive gaskets are another area where attention to detail pays dividends.It's not just about choosing the right material – it's about understanding how different gasket profiles behave under compression and how they accommodate surface imperfections. We keep a selection of five different gasket types on hand because we've learned that the "perfect" gasket depends on the specific application and enclosure design.
Installation torque matters more than most people realize.Under-tightening leaves gaps while over-tightening can distort the board or damage the waveguide channels. We use calibrated torque drivers and follow a specific tightening sequence that ensures even pressure distribution. It seems fussy until you've seen the difference it makes in actual shielding performance.
Environmental factors will humble even experienced installers.We learned this the hard way on a coastal installation where salt air corrosion compromised what seemed like a perfect installation. Now we always consider environmental factors when selecting gasket materials and surface treatments.
Maintenance is where many systems eventually fail.These boards need regular inspection – not just a visual check but actual continuity testing across the interface. We recommend quarterly inspections for harsh environments and bi-annual checks for controlled settings. The inspection frequency should match the criticality of the application.
Proper installation transforms these boards from simple components into reliable system assets.When installed correctly, they provide years of trouble-free service while maintaining the delicate balance between thermal management and electromagnetic protection that modern electronic systems require. Getting there requires respecting both the science behind the technology and the craft of proper installation.
What makes the difference between adequate and exceptional performance often comes down to the small details – the extra minute spent cleaning surfaces, the careful torque measurement, the right gasket selection. These details separate functional installations from exceptional ones, and in the world of electromagnetic shielding, exceptional is what keeps systems running properly.
